Host Architecture

Nodes¶

Gossamer includes a base node implementation called the host node that implements a shared base protocol for all blockchain protocols within the Polkadot ecosystem. The host node is used as the foundation for all official nodes within Gossamer and all custom nodes built with Gossamer.

Host Node¶

The host node is the base node implementation. As the base node implementation, the host node is not complete without a configuration file, genesis file, compiled runtime, and runtime imports.

Official Nodes¶

The gssmr node is an official node implementation for the Gossamer Testnet - a configuration file, genesis file, compiled runtime, and runtime imports used with the host node.

The kusama node is an official node implementation for the Kusama Network - a configuration file, genesis file, compiled runtime, and runtime imports used with the host node.

The polkadot node is an official node implementation for the Polkadot Network - a configuration file, genesis file, compiled runtime, and runtime imports used with the host node.

Node Services¶

The node services are the main components of the host node:

Core Service
Network Service
RPC Service
State Service

Each node service adheres to a common interface:

type Service interface {
    Start() error
    Stop() error
}

All goroutines within node services should start inside Start
All node services can be terminated without consequences by calling Stop
All node services whose Start method has not been called can be discarded without consequences

Core Service¶

The core service is responsible for block production and finalisation (consensus) and processing messages received from the network service; it initialises BABE sessions and GRANDPA rounds and validates blocks and transactions before committing them to the state service.

only the core service writes to block state
only the core service writes to storage state

Network Service¶

The network service is responsible for coordinating network host and peer interactions. It manages peer connections, receives and parses messages from connected peers and handles each message based on its type. If the message is a non-status message and we have confirmed the status of the connected peer, the message is sent to the core service to be processed.

the network service only reads from block state
only the network service writes to network state

Host Submodule¶

The host submodule is a wrapper for the libp2p host. This is used to abstract away the details of libp2p and to provide a simple reusable interface for the network host.

type host struct {
    ctx        context.Context
    h          libp2phost.Host
    dht        *kaddht.IpfsDHT
    bootnodes  []peer.AddrInfo
    protocolID protocol.ID
}

RPC Service¶

The rpc service is an implementation of the JSON-RPC PSP.

State Service¶

The state service is the source of truth for all chain and node state.

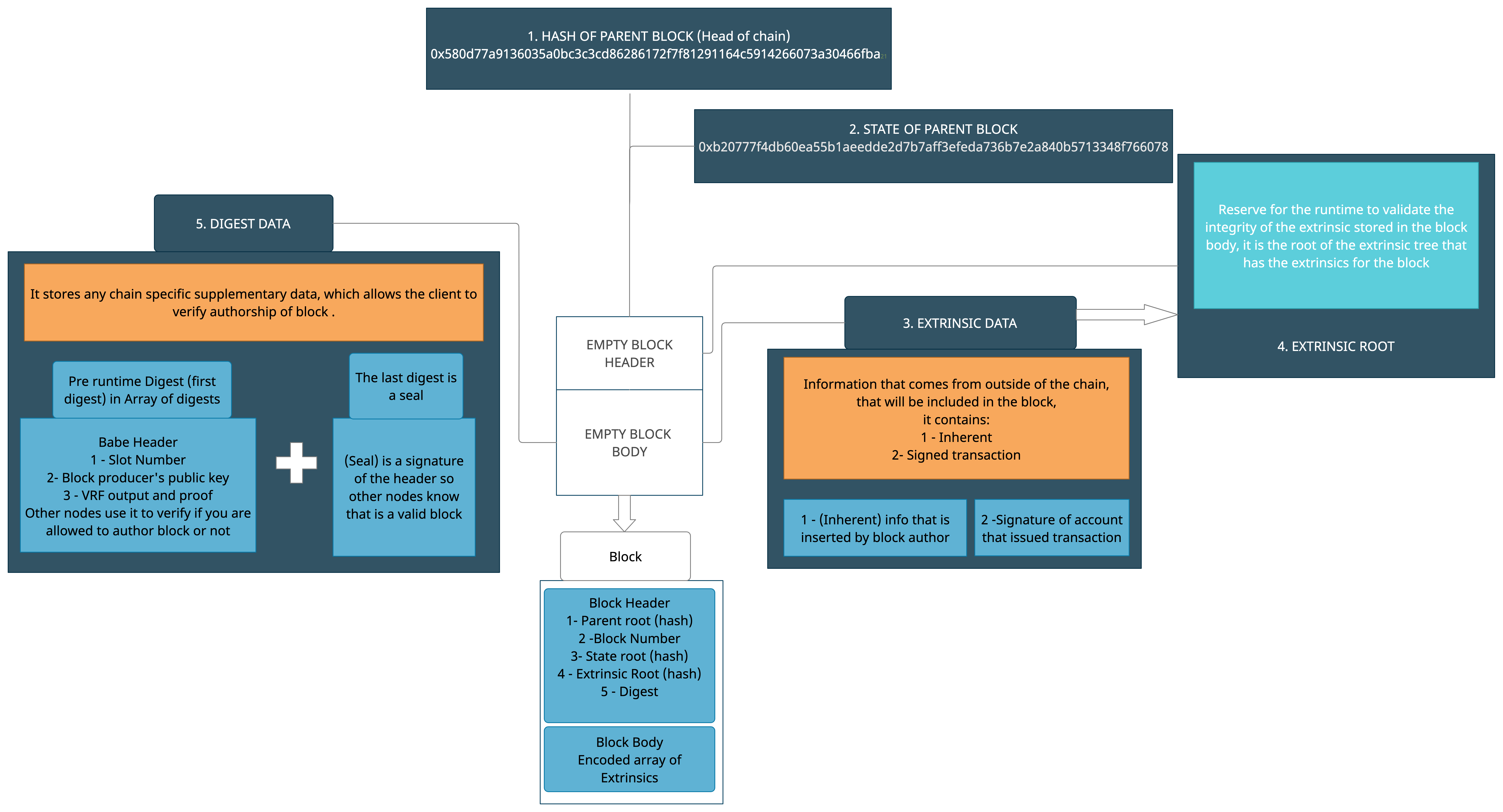

Block production¶

block production

A block is broken down into two sections, the header & the body.

The first step is to get information about the parent block, for new blocks, this would be the head of the chain.

The parent hash and state root is added to the block header (point 1 & 2)

We then need to process the extrinsics (point 3), extrinsics is used to describe any additional information to include in the block that isn't explicitly required to produce a block, such as signed transactions from accounts, or additional information added by the block author, like a timestamp.

Once processed, we get whats called an extrinsic root (point 4), this is used to verify the extrinsics when publishing later on.

Finally, once all the contents of the block are in place, we then create the digest(point 5), this is used to verify the blocks contents.

Information regarding the authoring of the block is stored in the Babe header, this allows verification of the block producer, the block, and the authority of the producer.

Finally, the last item of the digest, much like transactions, is a signature known as a Seal, this is a signature of the header to allow immediate verification of the integrity of a block.
